The VID29 series stepper motor is a patented stepping motor design. The product is mainly used in dashboard instrumentation and digital indicator equipment to transfer a digital signal into an accurate analog display. The VID29 series has a 4 gears design construction in order to guarantee high efficiency, high position accuracy and a robust gear system. The unique gear shape design reduces friction and noise. A special material is used for each component to increase liability & safety .

VID38 is a design integration of robust mechanical system and efficient micro-electromagnetic system. Chinese patent(201420786784.0 ). Features on smoothness of rotor running and specific gear design bring outstanding low noise performance (~ 26 dbA @ 100Hz ). Together with high efficient electro-magnetic design contribute high dynamic torque output up to 1900 uNm.

The VID28 Double Shaft Stepper Motor is a patented design with a reduction ratio of 180/1. Its innovation is based on the VID29-xx model. The VID 28 can drive two pointers independently. The benefits include a dial space saving opening a window for new concept designs. Applications include dashboards and digital indicator equipment to transfer digital signals to an analog display.

VID23 is a precise stepper motor with patent design. It is specially designed with transparent pointer shaft , pointer illumination intensity is superior to the motor which is in traditional way. It also brings cost reduction by saving LEDs. VID23 has a gear reduction ratio of 180:1. It's mainly used in dashboard instrumentation or other digital indicator equipments, transfer digital signals directly and accurately to analog display. VID23 is driven by 2 sequent logic pulse signals. It can be driven in 3.5V - 10V providing shaft stepping angle reso- -lution 1/12° The pointer can move with a speed no more than 400Hz(degree/s).

The VID69 Analog Car Clock Stepper Motor is a precision stepper motor designed with a reduced gear ratio 60:1 for minute shaft and 12:1 for hour shaft. The product is mainly used in automotive instrumentation and other equipments to support an analog clock function. The 6 step gear design is the foundation for the product’s high efficiency, high position accuracy and extremely robust gear system.

VID39 provides outstanding high dynamic torque, up to 22.5mNm, which extend engineering design space and save development time and cost to achieving customer requirement. Silent rotational movement is a necessary requirement on cluster motor, VID39 provide 40 dB. Gear ratio reduction, and minimize friction on gear meshing, hence noise reduced. VID39 motor has high quality, plug and play, and user friendly design that save cost of R&D development in customer side. Power consumption maintains as usual, but gets a better performance; it is a value-added product to VID customers.

The Reflow Module is for VID series stepper motor. It allows the assembly of the motor to fix onto PCB avoiding the manual soldering of the electric pins.The special material and the coating of the electric pins supports solderless solution The design and electric pins pass all automotive standards including vibration and shock tests. The reflow module is a solution for cost reductions and quality improvement.

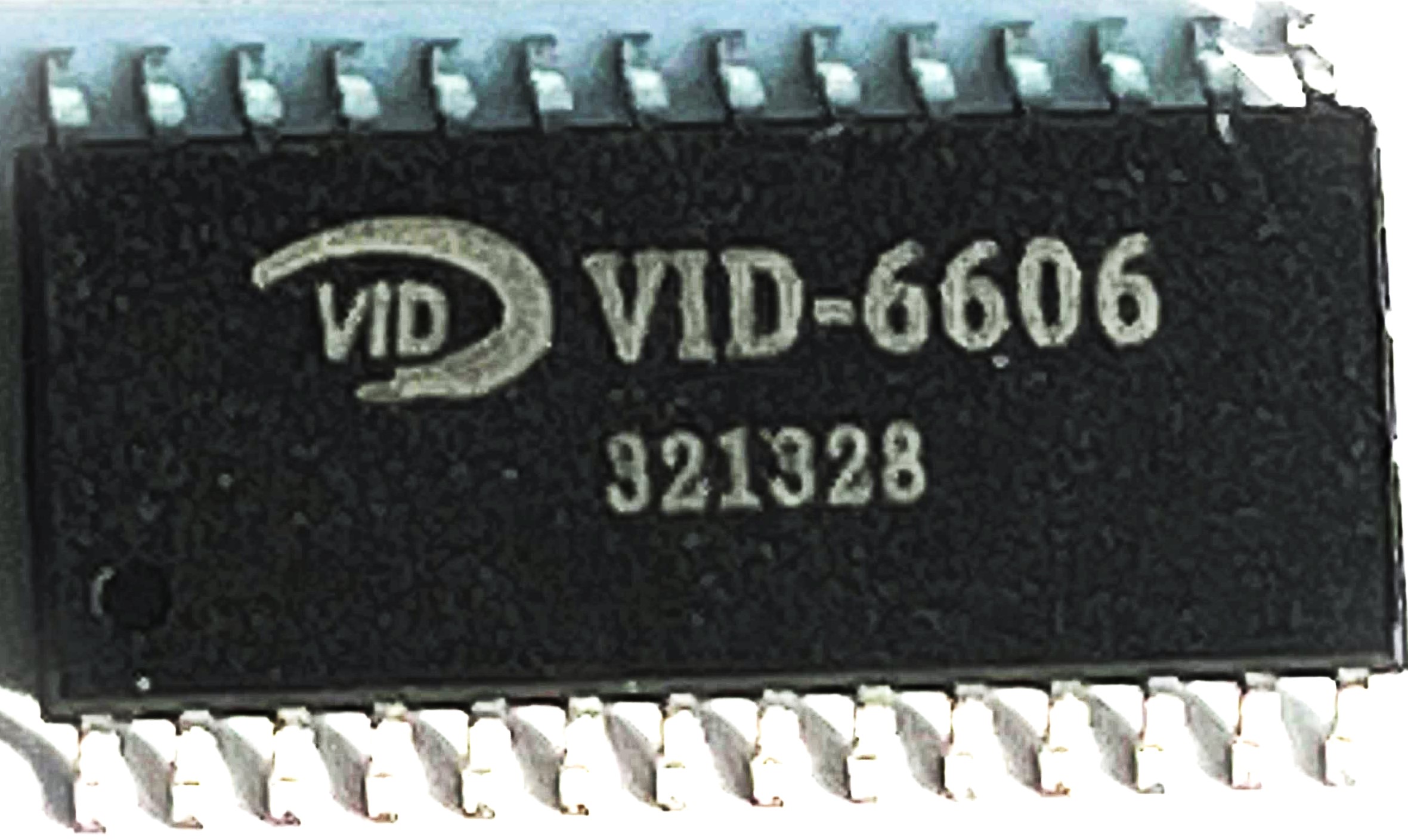

The VID66 series IC driver is a monolithic CMOS device used as an interface circuit to facilitate the use of VID29 series stepper motor. It is specifically designed for applications in car dashboards . The VID66-06 quad driver allows you to drive four motors with four identical drivers on the same chip, while the VID66-08 dual version drives two motors.

The F32series stepper motor is a patented stepping motor design. The product is mainly used in dashboard instrumentation and digital indicator equipment to transfer a digital signal into an accurate analog display. The VID29 series has a 4 gears design construction in order to guarantee high efficiency, high position accuracy and a robust gear system. The unique gear shape design reduces friction and noise. A special material is used for each component to increase liability & safety .

“VID39 Series – Automotive Air Conditioning Actuator VID39 Series Automotive Air Conditioning Actuator is designed to deliver high performance and reliability for automotive HVAC systems. With dynamic torque up to 20 cNm, it offers greater flexibility in engineering design, helping reduce development time and costs while meeting stringent customer requirements. Silent operation is essential in HVAC actuators, and VID39 excels with a low noise level of just 26 dB. Its optimized gear ratio and minimized gear friction contribute to quieter performance, making it ideal for noise-sensitive environments. Built with a robust construction, VID39 is engineered to withstand demanding conditions. Despite maintaining standard power consumption, VID39 delivers improved efficiency - making it a value-added solution that reduces the customer’s R&D investment.
